SPEC |
MODEL |

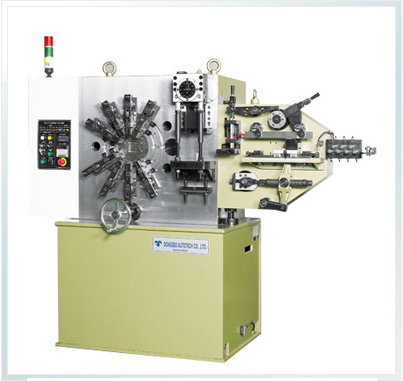

DS-8-220 |
MATERIAL |
STRIP (MAX.mm) |
30w x 0.8t |
WIRE (MAX.mm) |
Ø 1.5 |
|
FEEDER |
FEEDING LENGTH (MAX.mm) |
220 |
FEEDING ACCURACY (mm) |
0.01 |
|
PRESS |
CAPACITY (TON) |
8 |
STROKE (mm) |
15 |
|
STROKE ADJUSTED (mm) |
20 |
|
TABLE DIMENSION (mm) |
250L x 120w |
|
BENDING |
BENDING CAPACITY (TONS / SET) |
1 ~ 1.5 |
STROKE (MAX.mm) |
30 |
|
SLIDE (MAX.SET) |
11 |
|
BODY |
POWER SUPPLY 50 / 60Hz |
220 x 3ph |
MOTOR POWER (KW.P) |
2.2 ~ 4 |
|
DIMENSION (mm) |
850w 1850L 1700H |
|
PRODUCT CAPACITY (AT.60HZ, SPM) |
0-150 |
※ 본 사양은 개선을 위하여 예고없이 변경될 수 있습니다.
